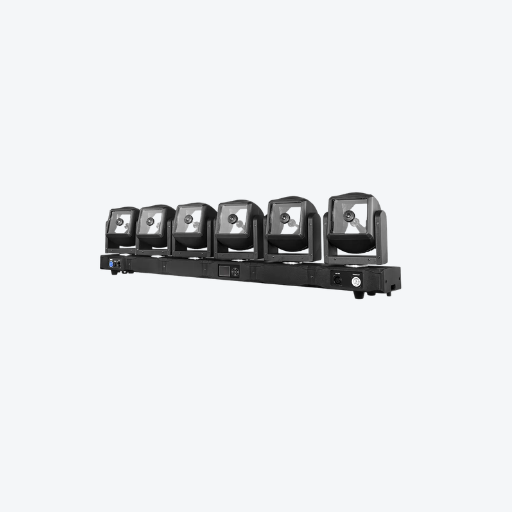

Crazy Bar / Moving Head Beam Bar 66m RGBW Pixel Mapping

Crazy Bar / Moving Head Beam Bar 66m RGBW Pixel Mapping

Moving Head Beam Bar profesional dengan 6 LED RGBW 60W berintensitas tinggi, dilengkapi fitur pixel mapping individual, beam angle sempit 3.5°, serta pergerakan PAN/TILT cepat dan presisi. Cocok untuk konser, panggung, festival, klub malam, gereja, studio TV, dan event skala profesional.

Spesifikasi Teknis :
• Sumber Cahaya Utama: 6 x 60W RGBW 4-in-1 LED
• LED Efek Tambahan: 180 x 0.2W RGB SMD LED (3-in-1)
• Umur LED: Hingga 50.000 Jam
• Frekuensi LED: 900Hz – 25kHz Adjustable
• Beam Angle: 3.5°
• Lensa: 6 PCS High Efficiency Lens
• Konsumsi Daya: 419W
• Tegangan Kerja: AC 100-240V, 50/60Hz
• Power Connector: PowerCON IN / OUT
• Faktor Daya: Active PFC
• Rating Proteksi: IP20
• Suhu Operasional: -25°C hingga 45°C
• Sistem Gerak (Movement).

PAN
• 360° Continuous Rotation
• 540° Rotation (8-bit / 16-bit).

TILT
• 360° Continuous Rotation
• 270° Rotation (8-bit / 16-bit).

Fitur Gerakan
• Motor 2-phase berkecepatan tinggi
• Gerakan halus, cepat, dan presisi
• Operasi dengan tingkat kebisingan rendah
• Auto Position Correction
• Position Memory Function.

Sistem Warna
• RGBW Color Mixing
• Red
• Green
• Blue
• White.

Fitur Warna
• Smooth RGBW Mixing
• Linear CTO 2500K – 8000K
• Dynamic Color Macros
• Variable Speed Color Effects.

Efek Cahaya
• Beam Effect
• Sharp Beam Effect 3.5°.

Pixel Mapping
• Kontrol individual pada setiap LED
• Mendukung efek chase, wave, dan animasi kompleks.

Pattern Effect
• Preset Static Patterns
• Preset Dynamic Patterns
• Built-in Movement Macros
Variable Speed Control.

Strobe Effect
• 1 – 25Hz Strobe
• Pulse Strobe
• Random Strobe
• Variable Speed Strobe.

Dimming
• 0 – 100% Smooth Linear Dimming.

Sistem Kontrol.
• DMX Protocol: DMX512
• DMX Channel: 25CH / 61CH / 85CH / 114CH / 120CH
• Mode Operasi: DMX, Auto, Master-Slave, Sound Active
• RDM: Supported
• DMX Recorder: Built-in
• DMX Edit Function: Built-in.

Konektivitas
• DMX IN (3-Pin XLR)
• DMX OUT (3-Pin XLR)
• PowerCON IN
• PowerCON OUT
• Shielded DMX Signal Protection
• Mendukung Daisy Chain Multiple Fixtures.

Pin DMX
• Pin 1 = Ground
• Pin 2 = Data (-)
• Pin 3 = Data (+).

Display & Interface
• LCD TFT Display 1.44″
• Menu Bahasa Inggris & Mandarin
• 5 Tombol Kontrol
• Tampilan LCD dapat dibalik 180°
• Auto Display Off.

Data Intensitas Cahaya (LUX)
• Warna: 1 Meter-3 Meter-5 Meter-7 Meter
• Red: 1600 Lux-206 Lux-80 Lux-42 Lux
• Green: 3860 Lux-520 Lux-195 Lux-102 Lux
• Blue: 144 Lux-20 Lux-8 Lux-4 Lux
• White: 4673 Lux-647 Lux-239 Lux-124 Lux
• RGBW Full: 9640 Lux-1278 Lux-487 Lux-256 Lux.

Keunggulan Utama
✅ 6 LED RGBW 60W berintensitas tinggi

✅ Beam angle sempit 3.5° untuk efek beam tajam

✅ Pixel Mapping individual per LED

✅ PAN/TILT cepat dan presisi

✅ Flicker Free untuk kebutuhan Broadcast & Film

✅ Frekuensi LED hingga 25kHz

✅ Dukungan DMX512 & RDM

✅ Strobe hingga 25Hz

✅ Dimming linear 0-100%

✅ Cocok untuk panggung profesional, konser, festival, klub, dan produksi televisi

Aplikasi Penggunaan
• Concert Lighting
• Stage Production
• Music Festival
• Night Club
• Wedding Production
• Church Lighting
• TV Studio
• Theater Show
• Rental Lighting
• Event Organizer (EO)

Ringkasan Produk:
6x60W RGBW Beam Bar | Pixel Mapping | 3.5° Beam Angle | PAN/TILT Mov
